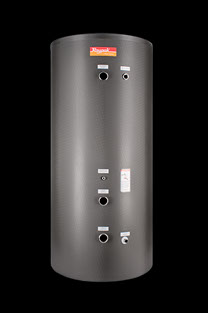

Under ASME section IV part HLW rules, an ASME-compliant tank is not required when the total system volume does not exceed 120 gallons, or when the total heating capacity does not exceed 200,000 BTUH.

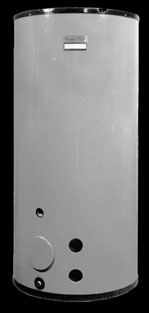

Our stainless steel tank provides high volume and resistance to erosion without any lining to fail.
When properly selected and installed, these tanks can provide 80% draw without appreciable temperature decrease in a single-temperature application.
Features:
150 PSIG maximum working pressure
No anodes required
No lining required
R18 Insulation
2 NPT connections for heater piping and tank outlet
Side ports for T&P valve, tankstat, thermometer, and drain valve
Indoor/outdoor installation
Storage tanks are required in conjunction with WH water heaters.
The heater provides rapid heating of a small volume of water; the tank provides a storage medium with enough capacity to handle short-term loads.
This separation of functions provides extremely fast, flexible recovery.

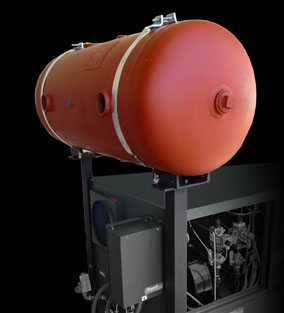

Low-mass high-recovery boilers such as Raypak's require access to a certain minimum water volume in order to avoid a sharp rise in temperature.
If the system water volume is under this limit, a buffer tank to add the missing volume can be a simple solution.
Horizontal, available in 24-, 40- and 60-gallon sizes. Air control valve included.
An optional kit is available to mount these tanks over one end of a Hi Delta unit. These kits are available for Hi Delta sizes 302B-2342B only.

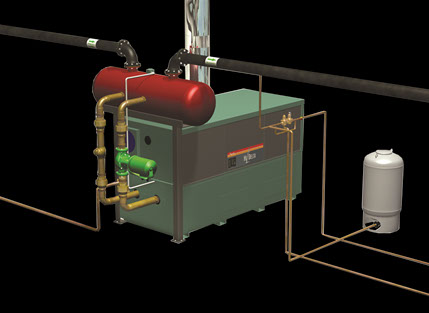

Closed-loop hydronic systems remain constantly full and under pressure, yet must be able to safely support the expansion of water as it heats.
These expansion tanks connect off the main piping to provide that function without reducing system pressure.

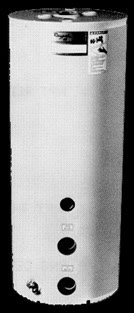

Storage tanks are required in conjunction with WH water heaters.
The heater provides rapid heating of a small volume of water; the tank provides a storage medium with enough capacity to handle short-term loads.
This separation of functions provides extremely fast, flexible recovery.
Under ASME section IV part HLW rules, an ASME-compliant tank is required when the total system volume exceeds 120 gallons, or when the total heating capacity exceeds 200,000 BTUH.
When properly selected and installed, these tanks can provide 80% draw without appreciable temperature decrease in a single-temperature application.
Features:
Available in 80-gallon and 115-gallon sizes
150 PSIG maximum working pressure
ASME stamped
Two magnesium anodes included
Glass-lined steel jacketed
Insulated with rigid foam to R12.9, meets ASHRAE 90.1
2 NPT connections for heater piping and tank outlet
Ports for T&P valve, tankstat, thermometer, and drain valve

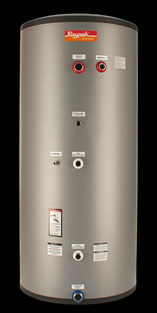

The Raypak indirect water heater uses heat from a boiler to heat domestic water.
The heat is transferred to the water by a coil heat exchanger inside of the tank.
The indirect storage tank stores the energy from the boiler for use later. With the excellent thermal insulation in the Raypak water heater, the boiler turns on and off less often.
To maintain energy efficiency the stainless steel tank is fully insulated with 2 inches of rigid foam. The Raypak indirect water heater is an efficient means of heating water.
This indirect water heater has all stainless steel construction.
The stainless steel tank is fully welded, pickled and passivated. The stainless steel resists corrosion assuring a long service life.

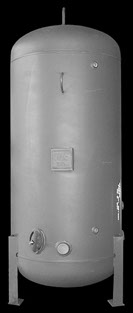

Storage tanks are required in conjunction with WH water heaters.
The heater provides rapid heating of a small volume of water; the tank provides a storage medium with enough capacity to handle short-term loads.
Under ASME section IV part HLW rules, an ASME-compliant tank is required when the total system volume exceeds 120 gallons, or when the total heating capacity exceeds 200,000 BTUH.
When properly selected and installed, these tanks can provide 80% draw without appreciable temperature decrease in a single-temperature application.
Features:
ASME Compliant
150 PSIG maximum working pressure
Two magnesium anodes included * Glass-lined
Steel jacketed
Insulated with rigid foam to R12.9, meets ASHRAE 90.1
2-1/2 NPT connections for heater piping and tank outlet * Ports for T&P valve, tankstat,
thermometer, and drain valve

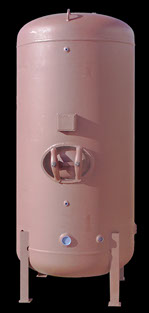

Storage tanks are required in conjunction with WH water heaters. The heater provides rapid heating of a small volume of water; the tank provides a storage medium with enough capacity to handle short-term loads.
This separation of functions provides extremely fast, flexible recovery. Under ASME section IV part HLW rules, an ASME-compliant tank is required when the total system volume exceeds 120 gallons, or when the total heating capacity exceeds 200,000 BTUH. When properly selected and installed, these tanks can provide 80% draw without appreciable temperature decrease in a single-temperature application.
Features:
Sizes: 235, 335, 534 gallons
ASME Compliant
160 PSIG maximum working pressure
11" x 15" Manhole
Two magnesium anodes?* Glass-lined
Angle iron legs
3 NPT connections for heater piping and tank outlet
Ports for T&P valve, tankstat, thermometer, and drain valve

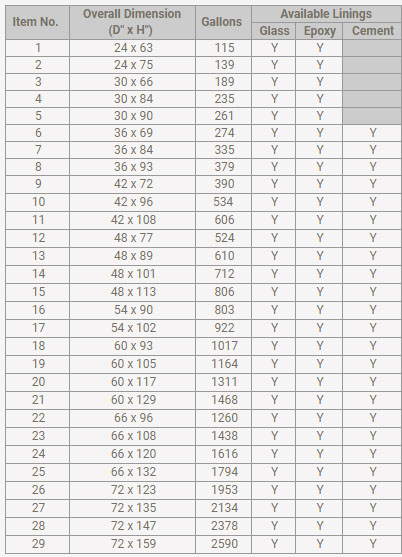

When our standard sizes don't fulfill your needs, Raypak can probably still provide the tank you need.
These custom tank sizes allow the engineer to tailor the tank for the application.
HYDRONIC ASME EXPANSION TANKS
HYDRONIC ASME BUFFER TANKS, 40 - 139 GALLON
NON-ASME STORAGE TANK STAINLESS STEEL, 110 GALLON
ASME DHW STORAGE TANKS, 80 AND 115 GALLON
STORAGE WATER HEATER, INDIRECT FIRED, STAINLESS STEEL
ASME DHW STOCK STORAGE TANK, 175 GALLON
ASME DHW STOCK STORAGE TANKS, 235-534 GALLON
ASME DHW CUSTOM VERTICAL & HORIZONTAL TANKS, 115 - 2590 GALLON
